Features & Benefits

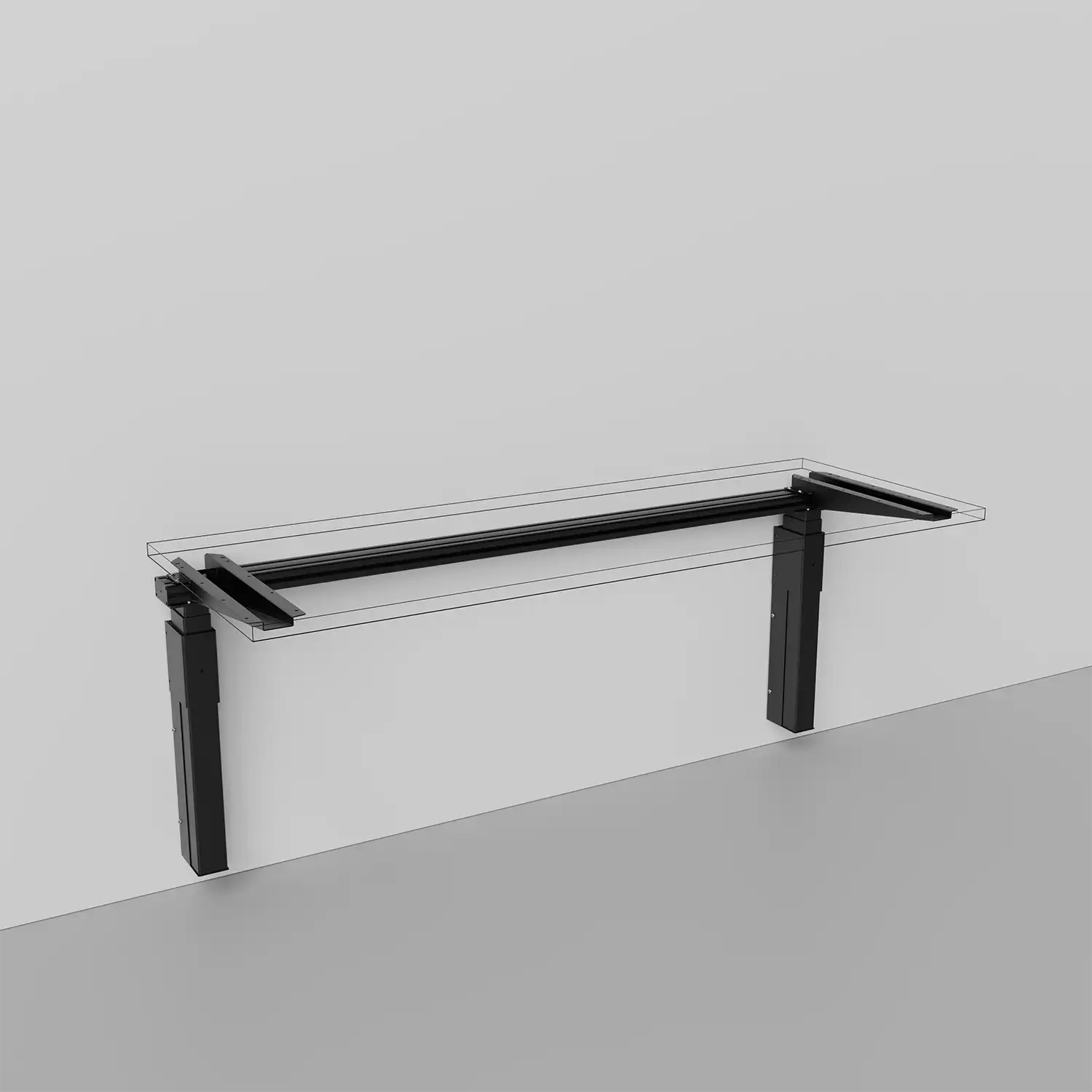

Individually Powered Lifting System
Independently powered lifting columns deliver balanced, synchronised height adjustment while supporting more load. Fewer moving parts improve reliability while ensuring smoother, safer operation.
Safety Systems
Inbuilt anti collision technology with added auto stop and reverse powered by physical sensors. Additional stop rails can easily be incorporated into the height adjustable systems.
Future Driven Design
All Kinendo lifting systems allow for add on accessories such as utensil rails, built in power ports and USB chargers, smarter control system for smart home integration while making it easy for tradesmen to install.
Ultra Slim. Exceptionally Strong
Kinendo frames feature an ultra-slim fascia profile that conceals internal components while maintaining a refined, high-end aesthetic. The reduced depth allows benchtops to lower to more ergonomic heights, improving access and usability for wheelchair users.
Technical Specifications
| Maximum Safe Working Load | 150kgs |
| Number of Motors | 2 |
| Operating Height Range | 550mm |
| Suits Benchtop Length | 400–2000 mm (additional configurations available) |
| Suits Benchtop Depth | 485–750 mm |
| Mounting Configuration | Wall-Mounted |
| Approved Mounting Substrates | Concrete, brick, timber or steel stud (substrate to be confirmed at time of order) |
| Lifting Speed (Under Load) | 42 mm/s |
| Operating Noise Level | ≤ 50 dB (quiet operation) |
| Power Supply | 220–230 V~ / 50–60 Hz / 5.0 A |
| Compliance | Electrical safety compliant with applicable AS/NZS standards |
| Control Interface | Integrated in-bench controls with app, smart home, wheelchair and voice control compatibility |
| Sink and Cooktop Compatibility | Compatible with integrated sinks and electric cooktops |
| Standard Anti Collision System | Load-based obstruction detection using motor current monitoring |
| Optional Safety Features | Emergency stop controls; pressure-sensitive safety rails; infrared presence detection |
| Service Access | Designed for service access without full system removal. |
| Warranty | 5 Years |
Accessories
Covers & Panels
Control Systems
Safety Systems
Electric Cooktops
Plumbing
GPOs, Power & Lighting
Installation
Our focus on bringing an extraordinary experience goes beyond the end user. Our products have been designed to be simple and quick to install and maintain for all qualified trades.
Shipping
This product is made to order and ships within 14 days of ordering. All products ship with express carriers or can be delivered by our team in some areas.
-
